MODEL AUTOPOL 2000XP AUTOMATIC GRINDING & POLISHING MACHINE

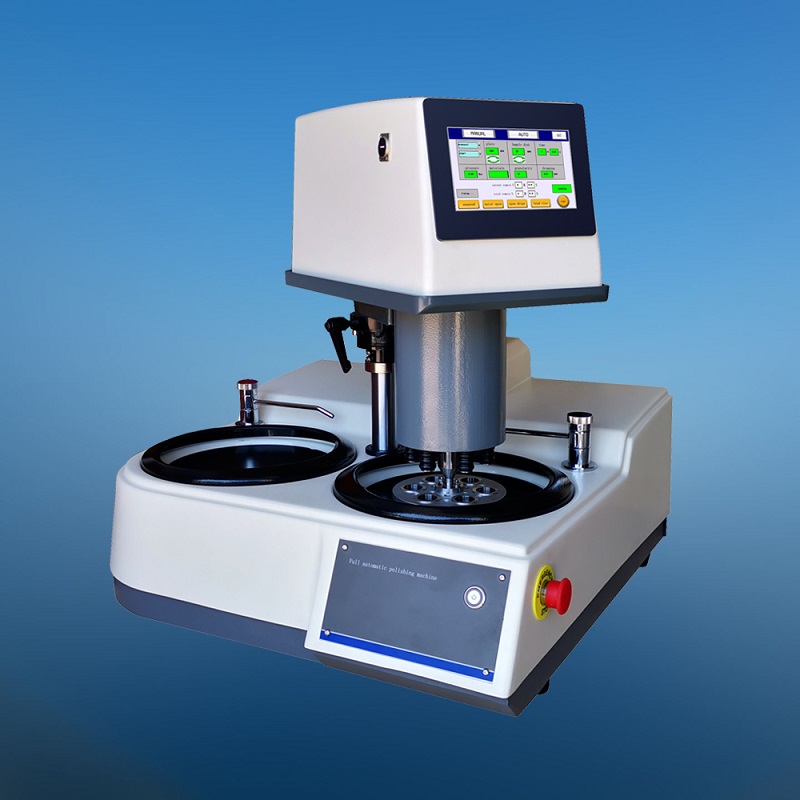

      Model AUTOPOL 2000XP is a kind of double discs pneumatic type automatic metallographic specimen grinding and polishing machine equipped with automatic polishing head and stepless speed changing. It features advanced performance and high degree automation and can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing automatically. It is the necessary metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.



Features

  • Individual samples are loaded independently.

  • Central force loading of the sample disc, fix six samples at one time, complete all grinding and polishing processes, and ensure the complete plane of each sample by the grinding.

  • Grinding & polishing disc and sample disc: set and run all grinding and polishing parameters, such as rotating speed, grinding and polishing time, rotation direction, water valve on/off, etc., which are automatically saved and easy to call.

  • Touch screen interface: it is convenient to set grinding and polishing parameters, intuitive status display and simple operation.

  • The rotation direction of both grinding & polishing disc and sample disc can be switched, and the rotation speed changing is stepless.

  • Working modes:

(1) Fully automatic mode:

According to the sample materials or the habits of users, 30 sets of processes (processes) can be set and called, and each process can contain 10 process parameters (for each process, for a certain grinding or polishing process, process parameters: grinding disc and grinding head rotation speed, grinding and polishing time...)

(2) Single operation mode:

According to each grinding and polishing process, 30 process parameters can be set and called: grinding disc and grinding head rotation speed, grinding and polishing time, water on-off

(3) Manual mode:

Operate a function of the equipment separately

  • Four channel automatic dispenser (optional):

(1) The main machine of the grinding and polishing machine controls the four channel dispenser.

     The type and speed of dispenser are controlled by the grinding and polishing machine.

(2) There are three working modes of the dispenser: manual, online and automatic.

(3) Connect the dispenser with the grinding & polishing machine and drip liquid according to the

     parameters set by the grinding and polishing machine. Each mode can set dripping speed and

     dripping time independently.

  • The USB flash disk stores 300 processes, which can be imported and exported.

  • Electromagnetic automatic locking of grinding head, replacing manual grinding head locking wrench, which is more convenient.

  • By easily replacing the magnetic anti sticky disc, all processes such as rough and fine grinding, rough and fine polishing of various samples can be completed. One disc is equivalent to several discs.

  • Mobile terminal remote control operation (optional).

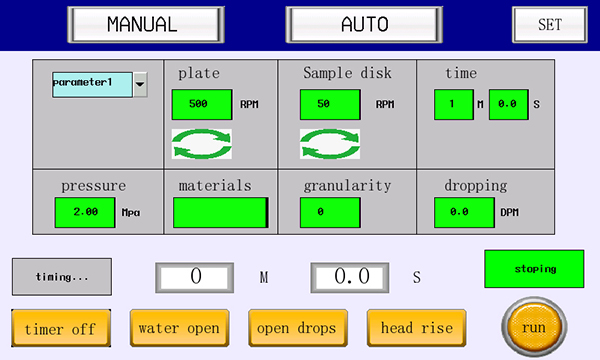

Operation interface

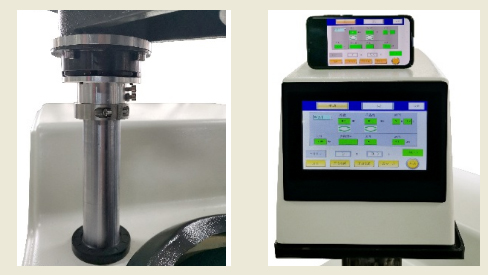

Electromagnetic automatic lock & remote control



Technical Specifications



Grinding & polishing disc diameter: 254mm (optional 230mm, 203mm) with magnetic disc

Grinding disc rotation speed: 50~1000 rpm (Forward and reverse rotation direction can be switched)

Sample disc speed: 30~200 rpm (Forward and reverse rotation direction can be switched)

Manual mode: 30 sets of parameters could be selected, each one can be set and called separately

Automatic mode: 30 sets of processes, each set of process contains 10-step parameters (from step 1 to step 10 automatically, each step has an independent setting of parameters)

Sample holder: Ø30mm, 6-hole (optional 20mm, 6-hole, 40mm/50mm 3-hole, or others can be customized)

Grinding head locking mode: Electromagnetic automatic lock

Working air pressure: Not less than 0.6 MPa

Motor power: 0.75Kw

Power supply: AC 220V, 50/60Hz, Single phase, 2KW

Dimensions : 760 x 730 x 700mm

Weight: 98kg



Standard accessory



Name

Quantity

Name

Quantity

AUTOPOL 2000XP

1 set

Diamond suspension polishing liquid, 6 micron, 200ml

1 bottle

One side sticky Abrasive paper (250mm) 180#

2 pieces

One side sticky polishing cloth (250mm), flocking (brown)

1 piece

One side sticky Abrasive paper (250mm) 800#

2 pieces

One side sticky polishing cloth (250mm), canvas

1 piece

One side sticky Abrasive paper (250mm) 1000#

2 pieces

Anti-sticky disc (250mm)

2 pieces

Waterproof ring

2 pieces

Magnetic working plate (250mm)

2 pieces

Input-water pipe 8mm

1 piece

Power cable

(Aviation plug joint)

1 piece

Output-water pipe 25mm

1 piece

Data cable (Aviation plug joint)

1 piece

Hose hoops 18-32

1 piece

Triangle valve Φ12.7mm

1 piece

Hook

1 piece

Teflon tape

1 piece

Rubber pad with strainer Φ12.7mm

1 piece

Fast twist joint SNZ08-04

1 piece

Touch pen

1 piece

Filter piece Φ12.7mm

4 pieces

Technical documents: Machine manual, certificate, packing list 1 share for each



Optional Accessory



Air pump (optional)

Air pipe 6mm x 3m (optional)

Tablet PC (10.2”, 4GB+64GB WiFi)

4-channel polishing liquid dispenser

Metallographic grinding paper

GSC250A

  • 100 pieces /package

  • Material: black carborundum

  • Sand size: P80# 120# 180# 320# 600# 800# 1000# 1200# 1500# 2000#

  • Size: Φ250mm

  • Waterproof and one side sticky, can be attached on the grinding plate directly

Anti-sticky disc

MAGNOMET

  • Anti-sticky disc: 5 pieces/box

  • Diameter: Φ250mm

  • Surface coating with Special anti-sticky layer, can attach the sticky paper and polishing cloth directly, and easily replace without sticky mark.

  • Can be reused

Polishing cloth

FT250A

  • Polishing cloth 10 pieces/package

  • Velvet fabric(long floss) / canvas (short floss)/ Woolen cloth (short floss) / silk cloth (no floss)

  • Φ250mm

  • One side sticky, can be attached directly on the grinding plate

Diamond grinding and polishing liquid

DSU

  • Diamond grinding and polishing liquid, 500ml/bottle

  • Diamond suspending in the liquid, can be dropped automatically or watering pot, Uniformly distribution

  • Size: 0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40micron, for different material
