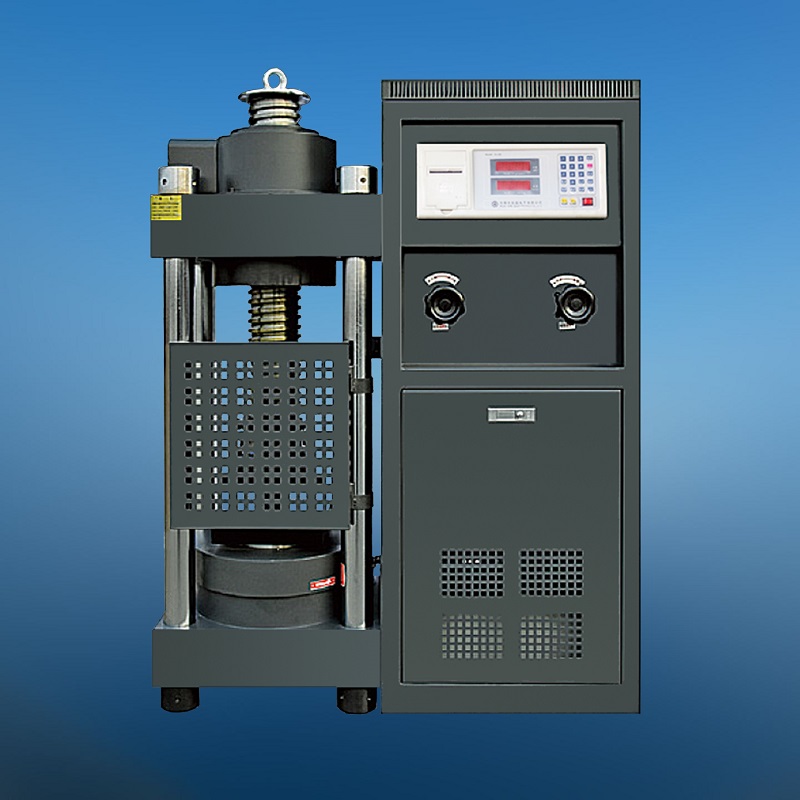

MODEL DYE-2000D

DIGITAL DISPLAY COMPRESSION TESTING MACHINE



Introduction



      This DYE-2000D digital display compression testing machine is mainly used for compressive strength test of building materials such as rock, concrete, cement products, hollow brick, refractory, engineering materials, and other building material etc. It is the necessary equipment to be used in the industries of highway, railway, bridge, construction, building materials, and laboratories of colleges and universities, enterprise production, and research institutions.



Features

  • The machine adopts hydraulic loading and electronic force measurement, and has the functions of load digital display, loading rate display, maximum load holding, overload protection and power-off data holding, etc.

  • The hydraulic system is controlled manually with the features of easy operation, safety and reliability.

  • The compression testing space is adjusted by screw rod and motor automatically.

  • The testing data is collected and processed by intelligent digital meter, and test report with the test date, number, load, compressive strength, etc. can be printed out.

  • The testing machine meets the testing requirements of GB/T 50081, GB/T 2611, and GB/T 3159, etc.



Main technical parameters:

  • Max. load: 2000KN

  • Relative error of test force indication: ±1%

  • Upper & lower pressure plate size: 220*250mm

  • Distance between columns: 290mm

  • Distance between pressure plates: 340mm

  • Piston diameter: Ø250mm

  • Piston stroke: 50mm

  • Motor power: 0.75kw

  • Power supply: AC 380V, 50Hz, three phases

  • Weight: 850kg

  • Overall dimension: 1000 * 500 * 1200mm
