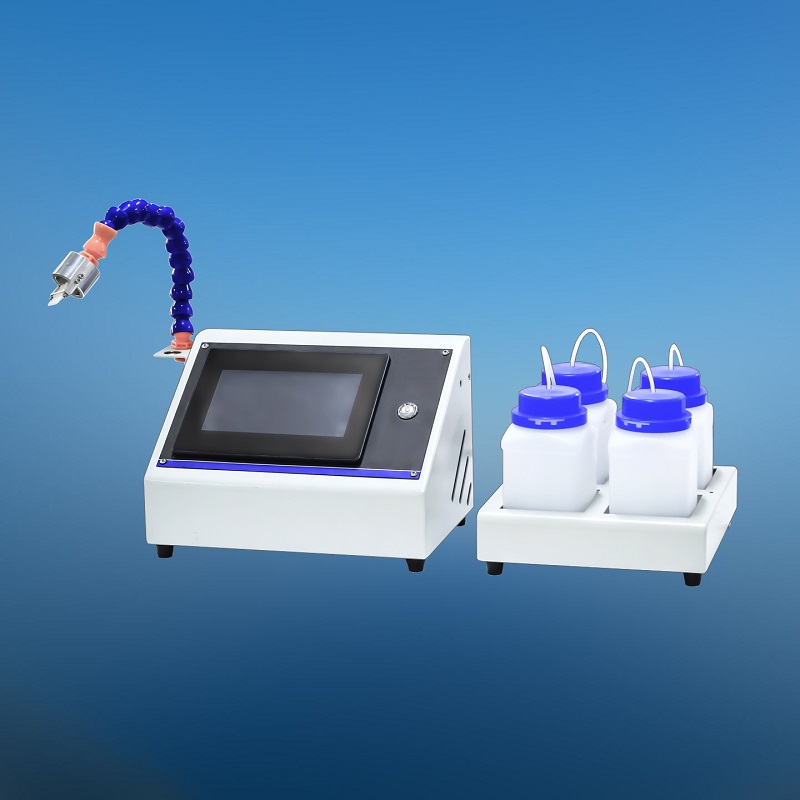

MODEL FY-5A AUTOMATIC GRINDING & POLISHING DISPENSER



      Model FY-5A automatic polishing dispenser can be used on various grinding and polishing machines to automatically drip the polishing liquid to the grinding disc or polishing disc at the required speed to achieve the purpose of polishing. This automatic polishing dispenser can provide four channels to add different polishing liquid at different speeds.



Features

  • Four channels can be set separately and work at the same time

  • Connect with the polishing machine and drip liquid according to the parameters set by the grinding and polishing machine

  • Three working modes of Manual / Online / Automatic, the dripping speed and dripping time of each mode can be set independently.

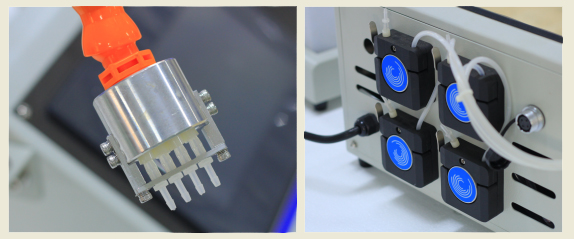

  • Automatic cleaning dropper

  • Larger or smaller dropping speed can be customized

  • It can be easily expanded into 6 channels or 8 channels



Main technical parameters

  • Dropping speed: about 6 drops / min - 280 drops / min

  • Maximum flow: 18 ml / min

  • Dropping speed regulation: stepless speed regulation, from 6 drops / min to 280 drops / min

  • Power supply: AC 220V, single phase, 10W



Standard accessory



Dispenser: 1 set

Drip bottle base: 1 set

Drip bottle: 4 pcs.

Drip tube: 4 pcs.
