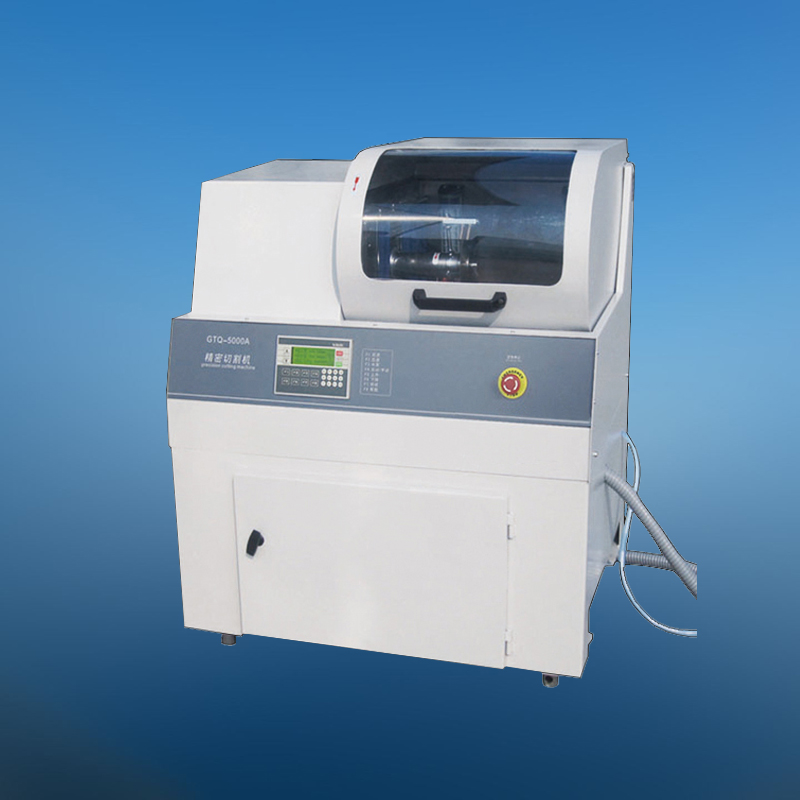

MODEL GTQ-5000A HIGH SPEED PRECISE METALLOGRAPHIC SPECIMEN CUTTING MACHINE
GTQ-5000A precise cutting machine is suitable for metal, electronic components, crystal, hard alloy, rock, ore, concrete, organic material, biological material (tooth, bone) and other materials. The equipment sets high precision location and has large speed range. The cutting ability is strong and meanwhile the machine has strong cooling system. It can preset feeing speed and menu control with LCD. It is easy to control. Automatic cutting can reduce operator’s fatigue to ensure the consistency of the specimen. It has large and bright cutting chamber which is equipped with safety switch. The upper and lower distance of cutting disc can be adjusted, this is favorable for the cutting disc after a certain period of using. Therefore, it is an ideal equipment for the industrial and mining enterprises and the scientific research institutes.
Technical specifications
Feeding speed: 0-1.5mm/s (0.01mm increments) Cutting disc rotating speed: 1950 rpm Maximum cutting diameter: Φ55mm Maximum travel: Z-axis 50mm, Y-axis 200mm, X-axis (manual) 50mm Cutting disc diameter: 200 x 1 x 32 mm Cutting power: 1500 W Power supply: three phases, 380V, 50HZ Dimensions: 100 x 104 x 120 cm
|
||||
