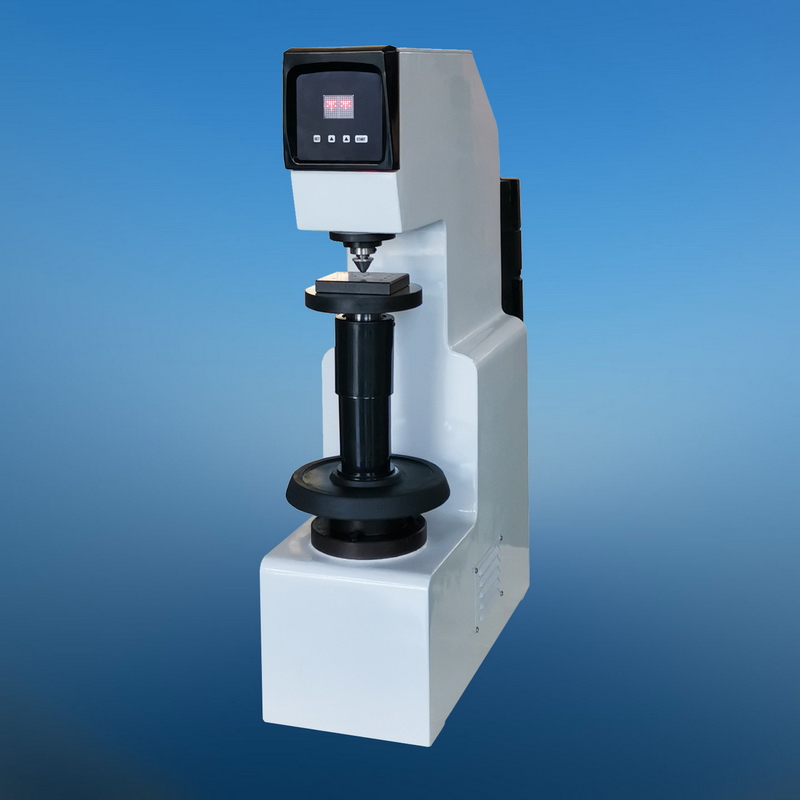

MODEL HB-3000B BRINELL HARDNESS TESTER


Feature & Use

  • Test force loading by weights, the testing is accurate, reliable and durable, high testing efficiency.

  • High quality integrated cast iron machine body, high rigidity, with the automotive paint treatment process, the appearance is smooth and beautiful.

  • Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

        It’s suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.

Specifications


Measuring range: 5-650HBW
Test force: 187.5, 250, 500, 750, 1000, 1500, 3000kgf
(1838.8, 2415.8, 4903.5, 7355.3, 9807, 14710.5, 29421N)
Max. height of test piece: 230mm
Depth of throat: 120mm
Dwelling time: 1~15s
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 700 x 268 x 842mm
Weight: approx. 210kg

Standard accessories


Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. for each
Brinell standardized block: 2 pcs.
20X Readout microscope: 1 pc.
