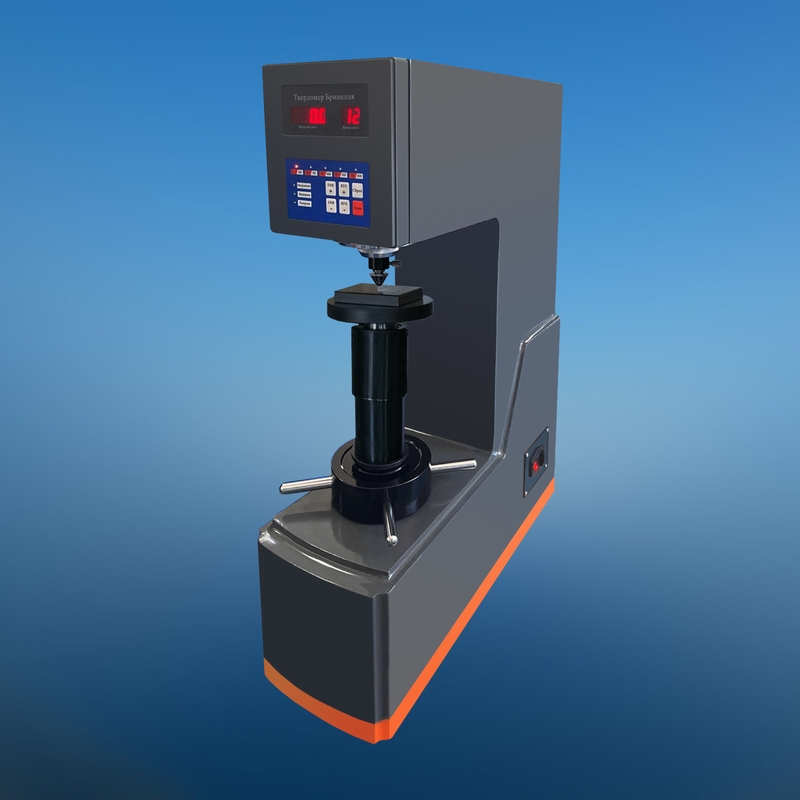

MODEL HBE-3000 ELECTRONIC BRINELL HARDNESS TESTER

Feature & Use

• Digital tube display, simple operation.

• Electric loading without weights, closed loop control, 10 levels of test force.

• High precision, high repeatability and stability, simple operation, high cost performance.

• High quality integrated cast iron machine body, high rigidity, with the automotive paint treatment process, the appearance is smooth and beautiful.

• Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10

        It's suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc., and widely used for the fields of metallurgy, metrology, building materials, research institutes, hardening shops, stainless steel, automobile, railway, aviation, tube rolling mills, found and so on.

Specifications

Measuring range: 8-650HBW

Test force: 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf

(612.9N, 980.7N, 1225.9N, 1838.8N, 2415.8N, 4903.5N, 7355.3N, 9807N,

14710.5N, 29421N)

Magnification of reading microscope: 20X

Minimum division value of micrometer drum: 0.01mm

Maximum height of sample: 240mm

Maximum distance from indenter center to machine body: 130mm

Power supply voltage: AC 220V, single phase, 50Hz

Overall dimension: 760 x 530 x 185mm

Weight: 112Kg

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. for each

Brinell standardized block: 2 pcs.

20X Readout microscope: 1 pc.
