MODEL HBS-MA-P

PORTABLE BRINELL HARDNESS AUTOMATIC MEASURING SYSTEM

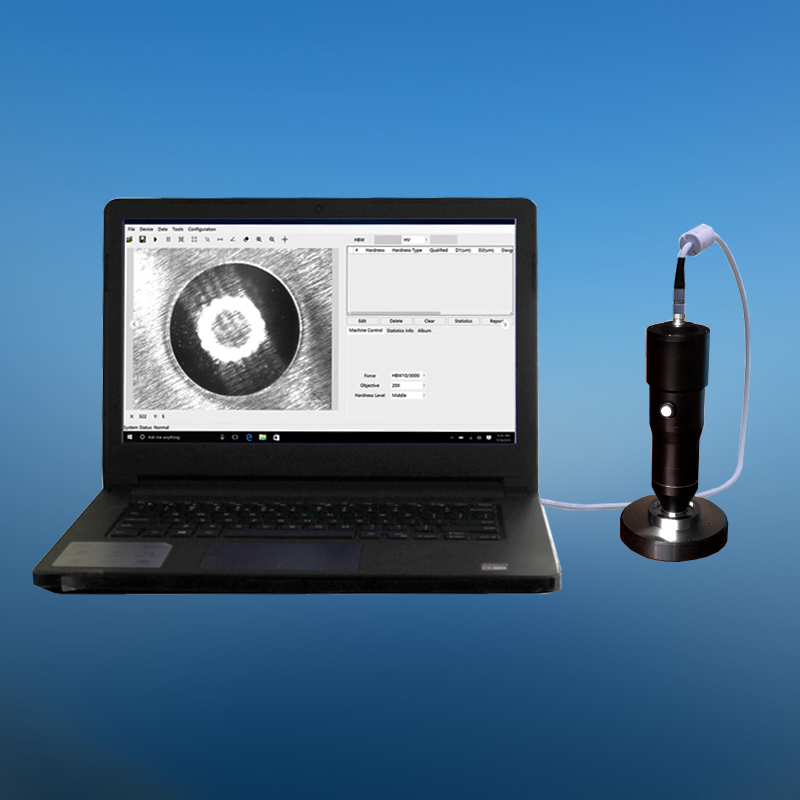

        The HBS-MA-P Portable Brinell Hardness Automatic Measuring System adopts the techniques such as optics, electronics, computer and image analysis etc, and it is specially used to test the Brinell hardness values automatically.



Features:



  • Convenient carrying performance: the whole system has small and exquisite design, convenient installation and simple operation.

  • Professional optical design: ensure that the Brinell indentation image is clear and the boundary is clear.

  • Accurate image analysis: integrate shape, brightness and edge calculation to improve the accuracy of measurement results.

  • Automatic measurement can be carried out for standard samples, with automatic measurement button, which is convenient for testing.

  • The brightness, contrast and lighting system are adjustable, and parameter values can be saved and imported for different sample surfaces.

  • Wide scope of application: accurate test results can be obtained in laboratory or industrial workshop.

  • Powerful software functions: single piece measurement, batch measurement, hardness conversion table, data and image storage, database query, unqualified value alarm.







Main Functions:

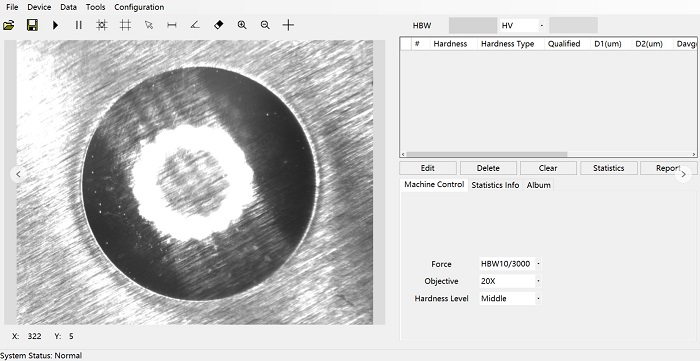

  • Capturing Images: Real time display image of hardness indentation; store and print its image.

  • Measuring Indentation: Automatically measure the indentation with good repeatability, high accuracy and wide usages. At the same time, the system also support to manually measurement and adjustment.

  • Calibrating method: Calibrate with standard hardness test blocks or length scales.

  • Hardness exchanging: According to GB/ASTM standard, automatically exchange the hardness value among the multiple hardness scales such as Brinell, Rockwell, Vickers, etc.

  • Drawings and texts report: Automatically record the test data and output the Word form report according to user’s stipulated requirement.

  • Data Output: Automatically record the test data and save the data with EXCEL form.

  • Database supporting: Support the database so as to easy user’s enquiry.



 Specifications:



  • Brinell hardness scale: HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000

  • Meet the standards: BSEN 6506, ISO 6506, ASTM E10, GB/T 231

  • Measuring range: 15.9~650HBW (effective hardness value recommended by ASTM E10)

  • Measurement resolution: 0.0001mm

  • Hardness value resolution: 0.1HBW

  • Digital imaging: 1.3 million pixels Industrial digital camera

  • Measurement method: Manual measurement, automatic measurement (for standard samples)

  • Calibration mode: Standard hardness block / length scale

  • Power Supply: USB power supply

  • Weight: 0.5kg



Accessories



  • Measuring head: 1 pc.

  • Softdog: 1 pc.

  • Standard Brinell hardness block: 1 pc.

  • U disk with software: 1 pc.

  • Instruction manual: 1 pc.
