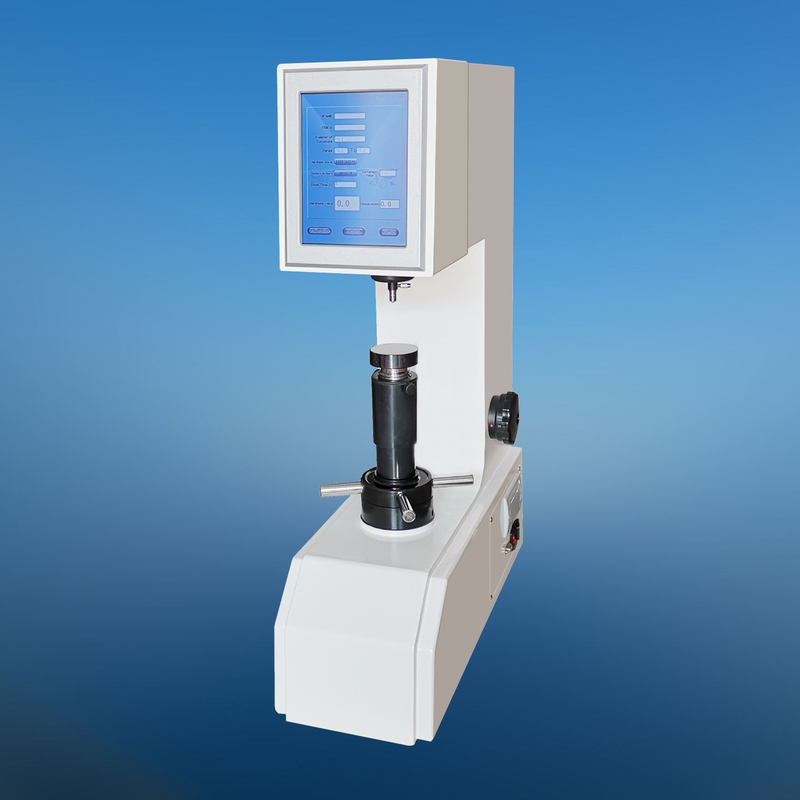

MODEL HRS-150T

TOUCH SCREEN DIGITAL DISPLAY ROCKWELL HARDNESS TESTER



Feature & Use:



  • Electric loading with weights, high precision sensor.

  • 8” Large touch screen interface, easy operation, multi-language versions

  • All Rockwell scales, total 15 types

  • Automatically apply the initial load and main load

  • Automatic correction of high, medium and low hardness values.

  • Built-in hardness value correction of convex cylindrical surface.

  • RS232 interface and Built-in printer (or USB interface is optional) for data output.

  • More sample and testing information. Data stored in USB flash disk, EXCEL format, easy for editing and processing

  • Powerful data processing ability. Various hardness conversion including HR, HB, HV etc. Setting acceptable range, over-limit alert, information input of operator and sample name, etc.

  • Test results can be stored, processed and printed automatically.

  • Modular design, easy maintenance

  • Modern and beautiful appearance, stable structure



Application:



        It’s suitable to determine the Rockwell hardness of ferrous and nonferrous metals, hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials and thermal spray coating.



Specifications:



Initial load of Rockwell

10kgf (98.07N)

Total load of Rockwell

60kgf (588N), 100kgf (980N), 150kgf (1471N)

Rockwell Scale

HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH,

HRK,  HRL, HRM, HRR, HRP, HRS, HRV

Hardness testing range

HRA:20-95, HRBW:10-100, HRC:20-70, HRD:40-77,

HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100,

HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125

Dwell time

1~99s

Hardness resolution

0.1HR

Load value error

0.5%

Hardness reading

LCD display

Screen size

8 inch

Data Storage

Can store 60 kinds of test results, built-in printer, RS-232 interface, optional USB flash disk automatically stored

Conversion Scale

Superficial Rockwell, Brinell, Vickers, etc.

Carried Standard

BSEN 6508, ISO 6508, ASTM E18, GB/T230

Max Height of Sample

200mm

Distance of Indenter to outer wall

160mm

Data output

RS232 & built-in printer (or choose USB interface)

Power supply

AC 220V/110V, 50/60HZ

Overall Dimension (mm)

560×200×800mm

Net weight

62kg



Operation Interface:



                                 Main interface                                      All Rockwell scales, 15 in total



                           Data storage interface                               Automatic correction interface





Standard Accessories:



Name

Quantity

Name

Quantity

Diamond Rockwell Indenter

1

1.5875mm Ball Indenter

1

Hardness block

(HRC High Low 2, HRB 1)

3

Large, Medium, “V” shaped Testing Table

1 each

Weights (A, B, C)

1 each

Plastic Dustproof cover

1

Fuse 2A 2 Level adjusting bolt 5

Power line

1

Operation Manual

1

Touch pen

1

Product certificate

1
