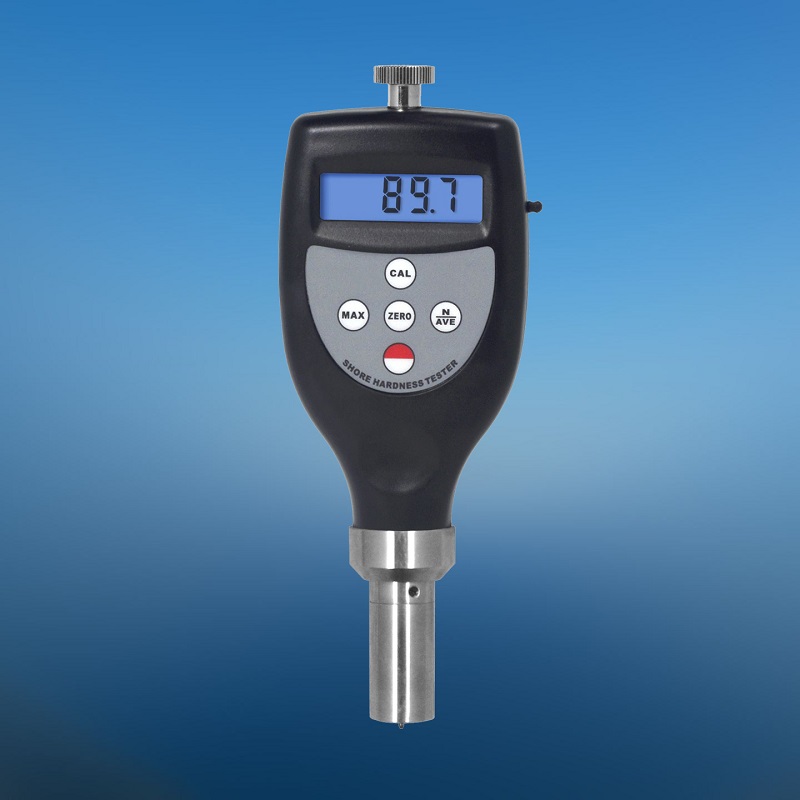

MODEL HT-6510 SERIES DIGITAL DISPLAY SHORE HARDNESS TESTERS

Feature & Use

• Small volume, convenient for carrying, easy operation

• Using advanced technologies, the hardness of materials can be accurately measured.

• When the battery voltage is lower than the specified value, it will alarm automatically.

• Digital display, no parallax.

• With the optional USB cable and software / bluetooth adaptor and software, it can communicate with PC computer and realize the functions of data acquisition, processing, analysis and printing.

• With automatic shutdown function, power saving.

• Precision conforms to GB/T 531-1999, GB/T 2411-80, etc.

        It can be used to determine the Shore hardness number of rubber, plastic materials precisely. It is the ideal measuring instrument for using on the spot.

Specifications

Display parameter: Hardness value / Average value / Max. value

Measuring unit: HA (HB / HC / HD / HE / HDO / HO / HOO)

Displaying range: 0-100 HA (HB / HC / HD / HE/ HDO / HOO)

Measuring range: 10-90 HA (HB / HC / HD / HE/ HDO / HOO)

Measuring accuracy: ≤ ± 1H

Hardness resolution: 0.1H

Low voltage prompt: Available

Automatic shutdown: Available

Working environment: Temperature 0-40 °C, Humidity: <80% RH

Power supply: 2 pcs. of AAA batteries

Dimensions: 176 x 65 x 27mm

Weight: approx. 170g

Standard accessories

Main unit

Calibration block

Carrying case

Optional accessories

Shore hardness test stand

USB cable & software

Blue-tooth adaptor & software
