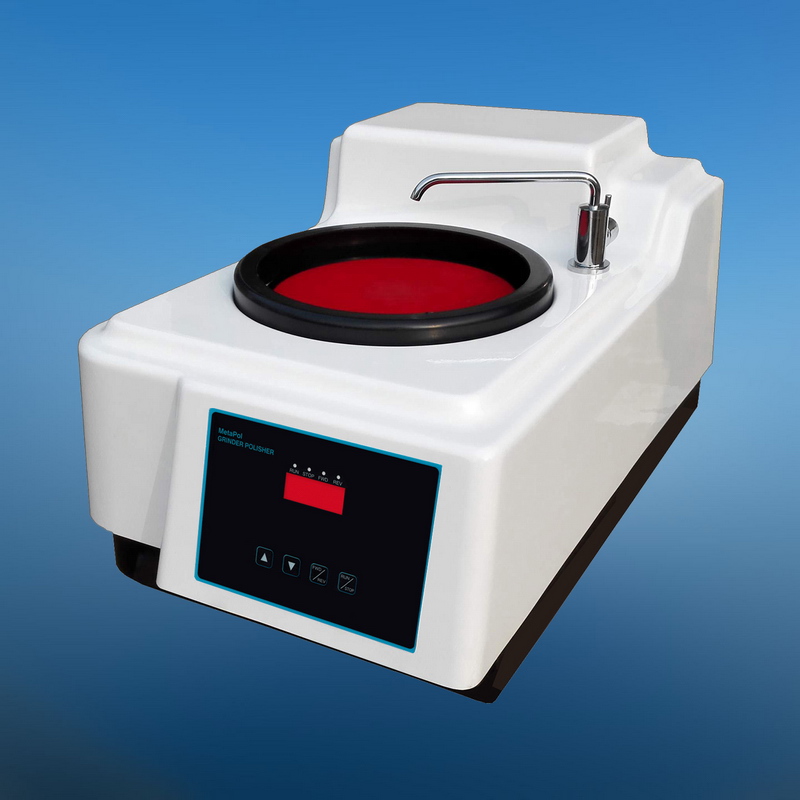

MODEL METAPOL 1250S

METALLOGRAPHIC GRINDING & POLISHING MACHINE



        Model METAPOL 1250S Metallographic specimen grinding and polishing machine is equipped with single disc and features stepless speed changing for grinding and polishing. It can finish the whole process of rough grinding, fine grinding, rough polishing and finishing polishing for specimen preparing. By adjusting the transducer, it can realize the rotating speed of grinding and polishing disc adjustable from 50 to 1000 rpm. This bring this machine with much more extensive applying and make it become the necessary metallographic specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.



Features

  • Stepless speed changing 50-1000 rpm

  • CCW and CW rotating direction control

  • Quick exchanging disc



Technical Specifications



Diameter of working disc: 250mm

Rotating speed of working disc: Stepless speed changing 50-1000 rpm

     (other speeds are optional)

Power supply: Single phase, 220V, 50Hz

Motor power: 550W

Dimensions: 730 x 450 x 370 mm

Net weight: 35 Kg
