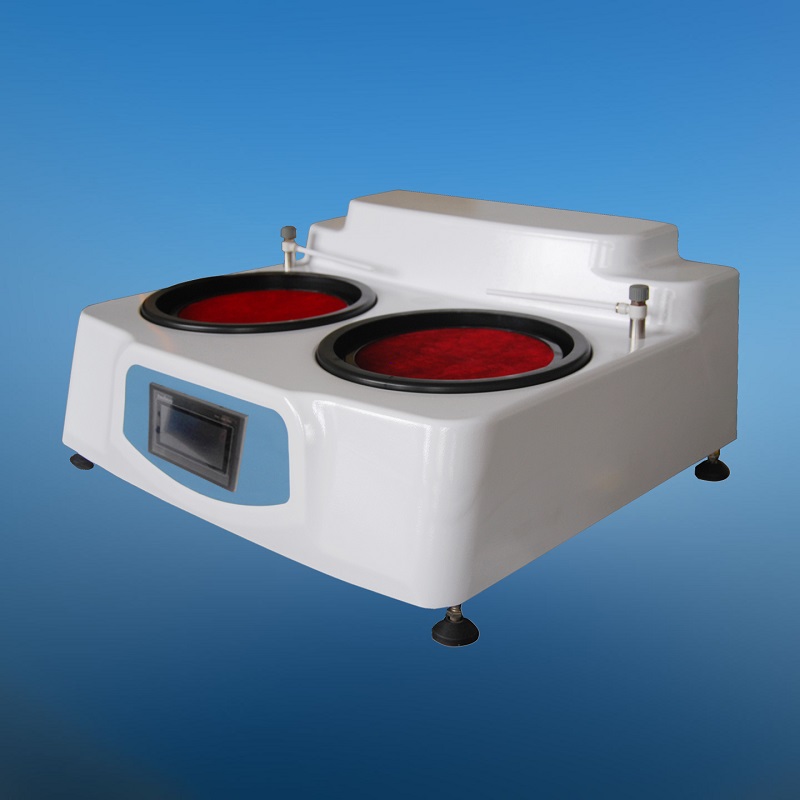

MODEL MP 300SE

METALLOGRAPHIC SPECIMEN GRINDING & POLISHING MACHINE



Feature & Use



This double discs desktop type Grinding/Polishing Machine is suitable for pre-grinding, grinding and polishing of metallographic specimens. It adopts microprocessor control system to obtain the rotating speed during 50-600 rpm directly.



The machine is equipped with cooling system that can cool down the specimen during grinding & polishing so as to prevent the metallographic structure from damage due to overheat. It’s easy to operate, safe and reliable, so it is an ideal equipment for the factories, research institutions and college labs to prepare metallographic specimens.



Specifications



Diameter of working disc: 300mm

Rotating speed of working disc: 50-600 rpm (stepless speed changing) or

150/300 rpm (two steps stationary speed)

Diameter of abrasive paper: 300mm

Power supply: 220V, single phase, 50Hz

Motor power: 550W

Overall dimensions: 755 × 640 × 300mm

Net weight: approx. 60kg
