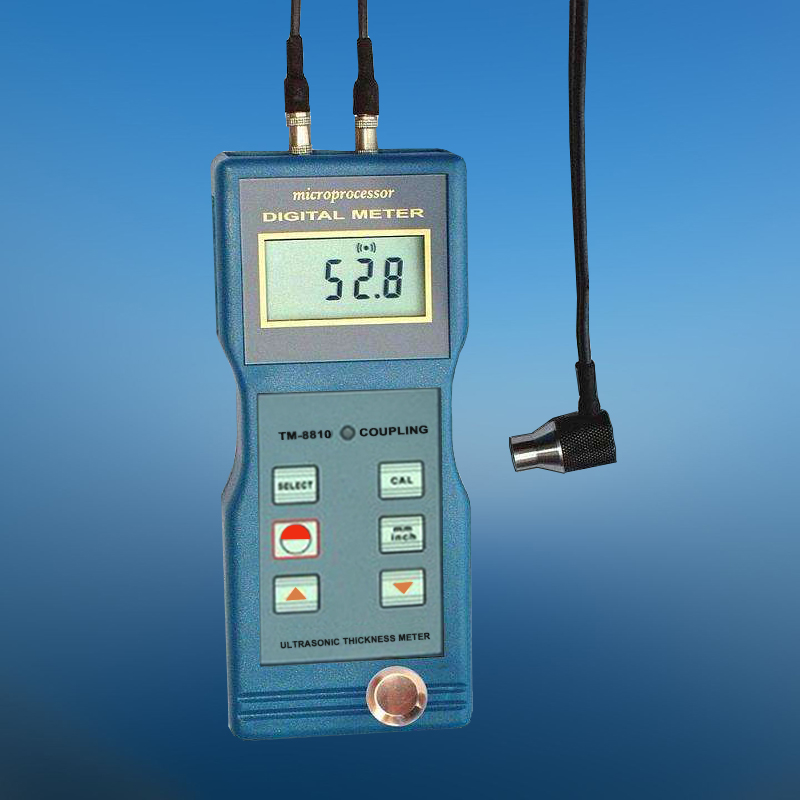

MODEL TM-8810 ULTRASONIC THICKNESS GAUGE
Application:
This thickness meter is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing.
Specifications:
Measuring range (metric/imperial): 1.2-200mm, 0.06-8 inch Operating principle: ULTRASONIC Materials measured: only 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron Lower limit steel pipes: Ø15x2.0mm, Ø20x3.0mm determined by the transducer Calibration block: included Resolution: 0.1mm Accuracy: ± (0.5%n+0.1) Power supply: 4x1.5v AA (UM-3) battery Battery indicator: low battery indicator Operating conditions: 0-+45℃ (32℉-104℉), ≤90%RH Dimensions: 160 x 68 x 32mm Weight: 208g (not including battery)
Standard Accessories:
Main machine: 1 set 5M Ф8mm probe: 1 pc. Bonder: 1 pc. Operation manual: 1 pc. Portable box: 1 pc.
Optional Accessories:
6M Ø6mm thin Material probe: Measuring range (steel): 1.0 50.0mm Operating temperature: -10~+60℃
5M Ø12mm high temperature probe: Measuring range (steel): 1.0~225.0mm (normal temperature) Measuring range (steel): 4.0~100.0mm (high temperature) Operating temperature: -10~+300℃
|
||||
