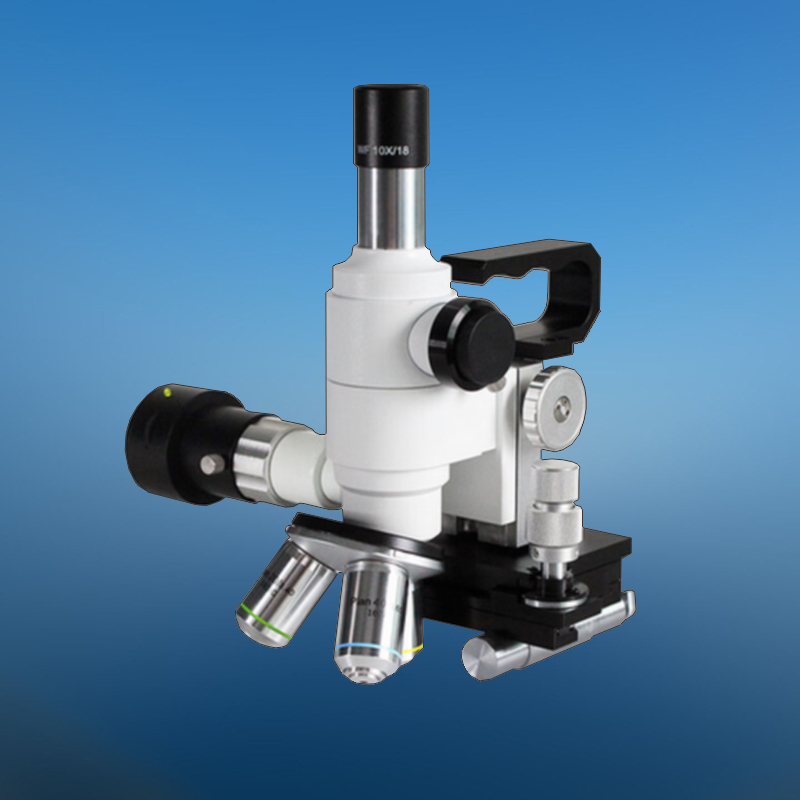

MODEL TX-1000 PORTABLE METALLURGICAL MICROSCOPE
Product Description
This
portable metallographic
microscope is a kind of field metallographic microscope, which is suitable for
on-site metallographic inspection and failure analysis of large work pieces. No
need for cutting and sampling, direct grinding, observation, and photography can
be performed directly on the work piece. It causes no damage to the work piece,
especially finished products. It improves metal inspection efficiency and
enhances factory product quality control. It can also be used for laboratory
metallographic observation.
-
No need
to cut sample, directlygrind and polish on the workpiece.
-
The
microscope base is equipped with a magnetic suction seat, which directly
attaches to the workpiece to observe the structure.
-
Compact
design, stable structure, clear imaging, bright field of view, and
comfortable observationCoarse and micro focusing handwheel, easy to convert
objective lens.
-
X-Y axis
mobile platform, with magnetic and iron feet connected and disconnected to
ensure the stability of the body.
-
Equipped
with a reflective lighting source for observing the field of view of
metallography.
-
Two
optical paths, one for observation and the other for digital photography.
-
Equipped
with aluminum alloy portable packaging box, suitable for field operations.
-
The handheld polishing machine is optional, which is suitable for on-site
polishing and grinding.
Technical specification
-
Optical
system: Upright, horizontal camera output port
-
Objective
lens: 10X, 20X, 40X, 50X (flat field)
-
Eyepiece:
10X, 20X (Large flat field)
-
Lighting
source: Reflective vertical illumination light source LED lamp
-
Mobile
Platform: X-Y axis 10mm
-
Focus
range: Coarse stroke 30mm, Micro stroke 1mm
-
Digital
photography device: Various adapters, cameras with over 5 million
pixels (Optional)
-
Video
imaging device: C-type interface 0.5X, 0.7X, 0.35X reduction lens
-
Total
magnification: 100X-1000X
-
Optional
accessories: Digital photography system, digital camera, handheld polishing
machine (on-site polishing).
|
|
