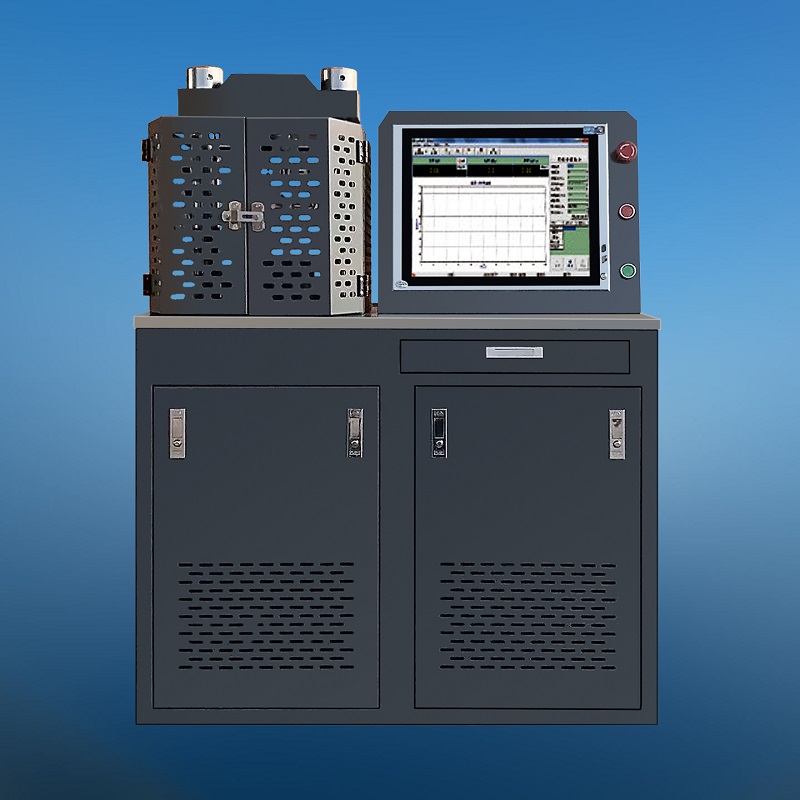

MODEL YES-600T COMPUTER CONTROLLED

CONSTANT STRESS COMPRESSION TESTING MACHINE



Introduction


      This YES-600T computer controlled constant stress compression testing machine is mainly used for compressive strength test of building materials such as rock, concrete, cement products, hollow brick, refractory, engineering materials, and other building material etc. It is the necessary equipment to be used in the industries of highway, railway, bridge, construction, building materials, and laboratories of colleges and universities, enterprise production, and research institutions.




Features

  • The testing machine is mainly composed of machine body, oil source, computer, servo valve, data acquisition software, and high-precision sensor, etc.

  • The testing machine adopts electro-hydraulic loading, sensor force measurement, computer operation, printer to print force value data, and convert compressive strength.

  • Large computer screen display. The automatic loading speed and loading mode are controlled by program, which makes the measurement results more accurate, and has the functions of home and speed, peak holding, overload protection and so on.

  • The compression testing space is adjusted manually.

  • The load of testing machine meets the requirements of GB/T 2611, GB/T 17671, GB/T 16826, GB/T 50081 and other standards.



Main technical parameters:

  • Max. load: 600KN

  • Load display accuracy: ±1%

  • Piston stroke: 80mm

  • Max. Piston speed: 50mm/min.

  • Compression space: 210mm

  • Pressure plate size: Ø170mm

  • Power supply: AC 380V, 50Hz, three phases

  • Weight: 400kg

  • Overall dimension (L × W × H): 850 × 400 × 1350mm
