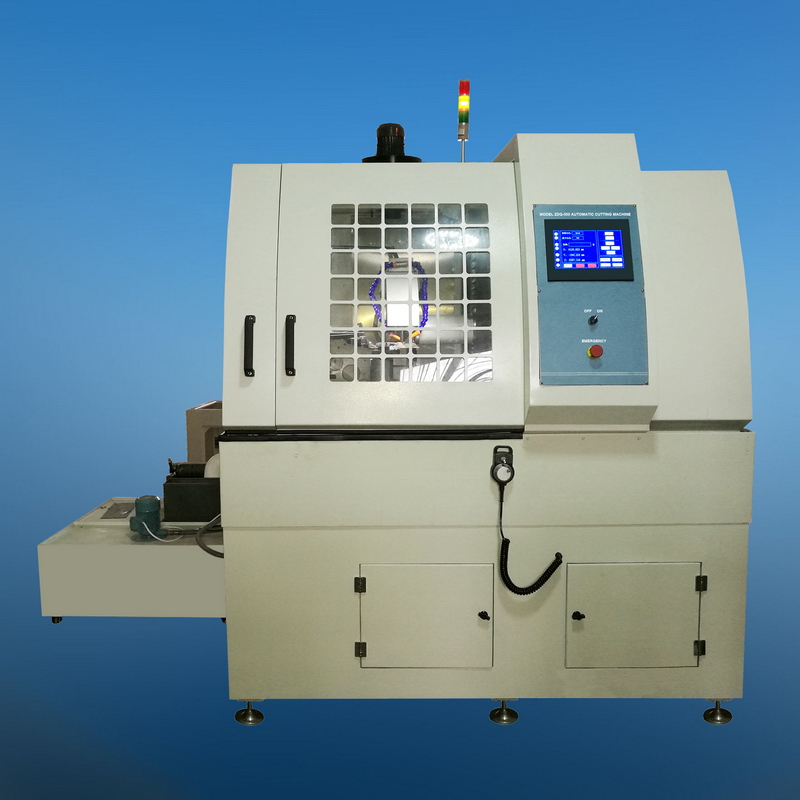

MODEL ZDQ-450 AUTOMATIC METALLOGRAPHIC SPECIMEN CUTTING MACHINE


        ZDQ-450 is a kind of PLC controlled automatic metallographic specimen cutting machine. The X, Y, Z directions can be controlled precisely and automatically. It has intelligent cutting ability which makes it possible to change the feeding rate according to the hardness changing of material, in this way, it can realize fast cutting effect and variable frequency controlling of cutting speed. It features very high reliability and controlling ability. It is the ideal large specimen cutting machine which can be used in colleges, laboratories, car manufacturing, steel manufactories, material research institutes and so on.


Main features:

  • Equipped with Manual Pulse Generator which is convenient for quick positioning.

  • Various cutting data can be displayed on touch screen, HMI (Human Machine Interface) controlling.

  • Four kinds of cutting types of swing cutting, continuous cutting, to-and-fro cutting and speed-changing cutting. Cutting speed can be changed according to different hardness materials so as to realize fast cutting. It can reach 15mm/min. cutting speed on steel round bar specimen.

  • Full-closed structure is adopted in working area. Large viewing window is provided on transparent safety shield of cutting chamber.

  • Draught fan ensures high efficiency air exhaust for the various steam and smog produced during cutting process, and this increases the brightness and legibility of cutting chamber.

  • Specially designed for the cutting of large work piece. Slide door and hinged door make it possible for the fixing of large work piece from three different directions (up-left-front).

  • Special lubricant liquid cooling tank with magnetic filter. Stainless working table. Water-jet type cleaning system. LED lighting system. Quick clamping vices.

  • 7.5 KW VFD motor linked to cutting disc directly. Stepless speed changing.

  • Humanization design, precise positioning, low noise, convenient operation, beautiful appearance, reliable and safe performance.


Main technical specifications


Manual / Automatic mode can be chosen at will.
Three-axis simultaneous motion.
10” industrial grade touch screen controlling.
Manual Pulse Generator operation is available.
Max. cutting diameter: 170 mm
Rotating speed: 100-3000 rpm stepless adjustable
Cutting disc diameter: 450 x 3.5 x 32 mm
Feeding speed: 0-15mm / min. (User may modify the speed as per the actual need)
Worktable size: 550 x 650 mm (X * Y)
Max. travel of Y-axis: 450 mm
Max. travel of Z-axis: 250 mm
Max travel of X-axis: 150 mm
Clamping vices: opening 300mm
Cooling water tank: 200 L
VFD Motor: 7.5 KW
Power supply: 380V, 50 Hz, three phases
Dimensions: 1500 x 1450 x 1900 mm
Weight: about 2200 Kg
